ECUsim 2000 OBD Simulator

ECUsim™ 2000 is an OBD simulator for OBD-II software and hardware testing and development. The 2000 is available in 3 editions which offer varying levels of user control. The Professional & Ultimate editions feature over 40 software commands that provide complete administration of the simulator, and allow you to create custom ECUs, add/delete DTCs & freeze frames, create PIDs, and dynamically assign their values.

Note: ECUsim 2000 can be purchased with any combination of protocols. You must select at least one protocol to complete the purchase.

Availability: In Stock

$0.00
Item# 602201

* Required Fields

Details

Details

ECUsim™ 2000 is a small, lightweight, entry level OBD simulator that is an indispensable tool for OBD hardware and software development and testing.It supports all legislated OBD-II protocols, fixed and user adjustable parameter IDs (PIDs), diagnostic trouble codes (DTCs), freeze frames, VIN, and many other SAE J1979 services.

The unit has five knobs assigned to common PIDs, a "fault event" button, and indicator lights for power, connection, and MIL (Malfunction Indicator Light). Physical connection with the device under test is made through a standard SAE J1962 female connector.

ECUsim 2000 features a USB connection which can be used with the ECUsim Commander software to create custom ECUs or modify existing ECUs.

The simulator can be purchased with any combination of "unlocked" OBD-II protocols, from as few as one to as many as five. Attempting to switch to a protocol that has not been unlocked will produce a "PROTOCOL LOCKED" message.

The 2000 is available in 3 editions (Standard, Professional, and Ultimate) which offer varying levels of user control. The Professional & Ultimate editions feature over 40 software commands that provide complete administration of the simulator using ECUsim Commander, and allow you to create custom ECUs, add/delete DTCs and freeze frames, create PIDs, and dynamically assign their values.

Key Features

  • Functional and physical addressing
  • Each PIM supports 3 virtual ECUs: ECM, TCM, and ABS
  • Five knobs assigned to frequently used PIDs:
    • Coolant Temperature
    • Engine Speed (RPM)
    • Vehicle Speed
    • Oxygen Sensor Voltage
    • Mass Airflow (MAF)
  • Supported SAE J1979 modes: 1, 2, 3, 4, 7, 9, and A.
  • "MIL", "Link" and "Power" indicators
  • "FAULT" button
  • USB connection for configuration, control, and bus monitoring
  • On-the-fly OBD protocol switching
  • Standard J1962F connector
  • Firmware upgradeable
  • Custom ECUs*
  • Custom PIDs*
  • Custom DTCs*
  • Custom freeze frames*
  • User settable VIN & CAL ID
  • Send OBD messages under software control
  • Knobs assignable to PIDs**
  • Signal generator (sine, triangle, square, random)**
  • Custom request/response pairs**

* The number of dynamic objects is only limited by available RAM and is dependent on edition purchased
** Planned functionality, not currently available

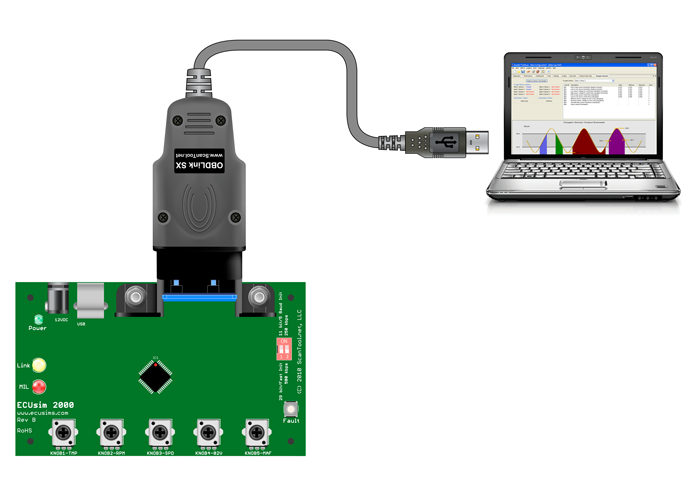

Typical Standalone Configuration

Typical ECUsim 2000 Configuration

In the above example, ECUsim 2000 simulates a vehicle's ECU. OBDLink SX is the chosen interface between ECUsim 2000 and a laptop running OBD-II software.

User Interface Diagram

ECUsim 2000 User Interface Diagram
  1. Power LED
  2. Link LED
    The function of this LED depends on the protocol in use:
    a. ISO 9141-2 and ISO 14230-4 protocols: the LED is on while at least one ECU is initialized. The LED dims when an OBD message is received.
    b. J1850 and CAN protocols: the LED blinks when an OBD message is received.
  3. Malfunction Indicator Light
  4. Knobs assigned to the five commonly used Mode 1 PIDs.
  5. Fault button
    When pressed, the following happens:
    a. Set MIL and number of stored DTCs (Mode 1, PID 01)
    b. Generate pending, stored, and permanent* DTCs
    c. Generate freeze frame data
  6. Configuration DIP switch has two switches that set protocol attributes for ISO 15765-4 (CAN). Switch number 1 is also used to select the init type for ISO 14230-4:
    a. 29 bit/11 bit. Selects CAN frame ID type.
    b. 500 kbps/250 kbps. Selects CAN baud rate.
    c. Fast Init/5 Baud Init. Selects the type of initialization for ISO 14230-4.
  7. Diagnostic Link Connector (DLC)
  8. USB connector
  9. Power jack (12 VDC)

* SAE J1979 defines permanent DTCs only for ISO 15765-4 (CAN)

Specifications

Additional Info

DEVICE WEIGHT2.6 oz (73.7 g)
DIMENSIONS5.0 x 3.5 x 1.12 in (127 x 87.4 x 28.4 mm)
OPERATING TEMPERATURE-4° to 131°F (-40° to 85°C)
PACKAGE CONTENTS
  • ECUsim™ 2000 OBD simulator unit
  • 110/220 VAC to 12 VDC switching power supply
  • US style power cable
  • USB cable
WARRANTYECUsim™ 2000 comes with 1 year parts & labor warranty.
Protocols
  • Support for all legislated OBD-II protocols:
    • SAE J1850 PWM (Ford)
    • SAE J1850 VPW (GM)
    • ISO 9141-2 (Asian, European, Chrysler)
    • ISO 14230-4 (Keyword Protocol 2000)
    • ISO 15765-4 (CAN 250/500 kbps, 11/29 bit)
Compare

ECUsim™ 2000 Editions Comparison Chart

The ECUsim 2000 is offered in 3 firmware editions: Standard, Professional, and Ultimate. For more information about the features listed, please consult the ECUsim 2000 Programming Manual.

Standard
Professional
Ultimate
Supports all OBD-II protocols1
Functional and physical addressing
Default ECUs: ECM, TCM, ABS
Supports SAE J1979 modes 1, 2, 3, 4, 7, 9, A
USB connection
Software selectable protocol
Firmware updates
Custom ECUs*
Custom PIDs*
Custom DTCs*
Custom freeze frames*
User settable VIN & CAL ID
Send OBD messages under software control
Knobs assignable to PIDs2
Signal generator (sine, triangle, square, random)2
Custom request/response pairs2
No limitations on future functionality
Cost
Included
+$300.00
+$600.00
1ECUsim 2000 can be purchased with any combination of the following protocols: J1850 PWM, J1850 VPW, ISO 9141, ISO 14230 (KWP), and ISO 15765 (CAN)
2Planned functionality; not currently available
*The number of dynamic objects is limited by available RAM
DocumentationApps & FirmwareSupport
Visit ECUsim™ 2000 forum board to ask questions and get support for this product.
