J1939 Bus OBD Simulator

J1939 Bus OBD Simulator

Availability: In Stock

$229.95
Item# 600206
Details

Details

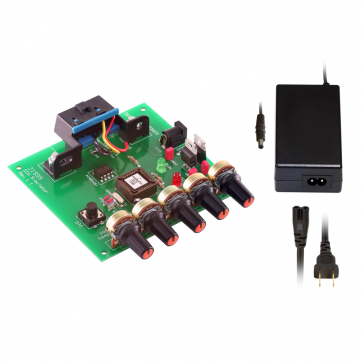

The J1939 simulator is a valuable tool for the development and testing of diagnostic programs and hardware. This simulator has 5 user-adjustable PIDs. The DTC button can be used to generate trouble codes and illuminate the MIL LED. Physical connection is made through a standard SAE J1962 connector. This item ships with a 24V switching power supply and a U.S. style/UL listed power cable.

  • 5 adjustable PIDs via potentiometers (coolant temperature, RPM, Speed, O2 voltage and MAF)
  • Standard J1962 connector
  • 24V operating range
  • MIL and Connection LEDs
  • 29 bit / 250 kB CAN BUS communication
  • Supports some J1979 compliants DMs
  • Simulates Truck and CAR ECUs
  • ECU source address is 0x00
Specifications

Additional Info

DEVICE WEIGHT-
DIMENSIONS-
OPERATING TEMPERATURE-4º to 131º F (-20º to 55º C)
PACKAGE CONTENTS
  • ECU Simulator, J1939 Bus
  • Power Supply, 24VDC @ 3.33A
  • Equipment AC Cord
WARRANTYThis product is covered by a one year parts & labor warranty.
DocumentationApps & Firmware
Download section here
Support

Visit J1939 Bus OBD Simulator forum board to ask questions and get support for this product.

Support for this product is limited.
