J1850 PWM ECU Simulator

This item is no longer available. It had been superseded by ECUsim 2000


J1850 PWM ECU Simulator

Availability: Out of stock

$0.00
Item# 600203
Details

Details

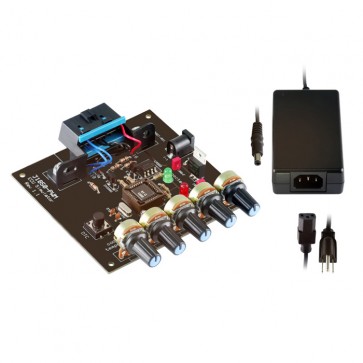

The J1850 PWM ECU Simulator is a valuable tool for the development and testing of OBDII diagnostic programs and hardware. This simulator has 5 user-adjustable and 6 fixed-value PIDs. The DTC button can be used to generate trouble codes and illuminate the MIL LED. The trouble codes can be cleared using a Service 4 request or by simply cycling the power to the simulator. Physical connection is made through a standard SAE J1962 connector. This item ships with a 12V switching power supply and a U.S. style/UL listed power cable.

Supported PIDs

    PID#
    01 - Monitor status since DTC's cleared
    02 - DTC that caused required freeze frame data storage
    03 - Fuel system status
    05 - Engine coolant temperature
    0C - Engine RPM
    0D - Vehicle speed sensor
    10 - Air flow rate from MAF
    13 - Location of oxygen sensors
    14 - O2 sensor Bank 1 sensor 1
    1C - OBD requirements to which vehicle is designed
    1F - Time since engine start

      Contents

      • ECU Simulator, J1850 PWM
      • Power Supply, 12VDC @ 3.33A
      • Power Cord, IEC, UL Listed, 6ft
Specifications

Additional Info

DEVICE WEIGHT N/A
DIMENSIONS N/A
OPERATING TEMPERATURE -4º to 131º F (-20º to 55º C)
PACKAGE CONTENTS N/A
WARRANTY No
