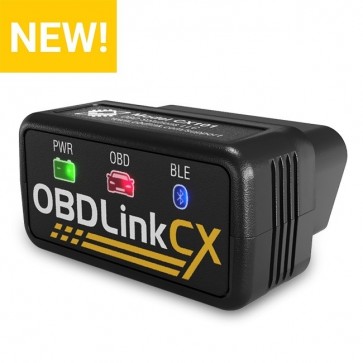

OBDLink CX BLE Adapter

Affordable, easy to pair BLE adapter optimized for best experience with the BimmerCode car coding app. Rock-solid BLE connection, 100% coverage of all cars and functions supported by BimmerCode.

Availability: In Stock

Regular Price: $49.95

Special Price $33.95

Item# 431101
Details

Details

  • MADE FOR BIMMERCODE and recommended by the Bimmercode Team
  • 100% COVERAGE of vehicles, protocols and advanced features supported by Bimmercode
  • EASY IN-APP PAIRING TO IOS & ANDROID, advanced sleep mode and overvoltage protection allow OBDLink CX to be left plugged in
  • ROCK-SOLID CONNECTION avoids data corruption and dropped packets, won’t brick your ECU
  • FREE OBDLINK APP -- monitor live parameters, perform diagnostics, clear check-engine light
Specifications

Additional Info

INTERFACE Bluetooth
DEVICE WEIGHT 0.7 oz (20 g)
DIMENSIONS 1.8 X .9 X 1.3 inches (46 x 23 x 33 mm)
SUPPORTS ALL OBD-II PROTOCOLS Yes
SUPPORTS SINGLE-WIRE CAN (GMLAN) No
SUPPORTS FORD MEDIUM-SPEED CAN (MS-CAN) No
BLUETOOTH SPECIFICATIONS Bluetooth 5.1 BLE
OPERATING CURRENT 55 mA
BATTERYSAVER™ MODE <1 mA
OPERATING VOLTAGE 12V nominal (8-18V operating range)
OPERATING TEMPERATURE -4º to 131º F (-20º to 55º C)
OPERATING HUMIDITY 10 to 85% (non-condensing)
MAXIMUM PARAMETER ID (PID) RATE 26
PACKAGE CONTENTS OBDLink CX adapter, Quick Start Guide, Warranty Card
CERTIFICATIONS FCC, CE
WARRANTY 90-day money back guarantee
3-year warranty
Protocols
  • SAE J1939 (heavy duty vehicles)
  • ISO 9141 (Asian, European, Chrysler vehicles)
  • ISO 11898 (raw CAN)
  • SAE J1850 VPW (GM)
  • ISO 14230 (Keyword Protocol 2000)
  • ISO 15765 (CAN for vehicle diagnostics)
