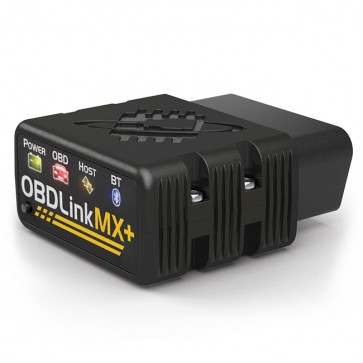

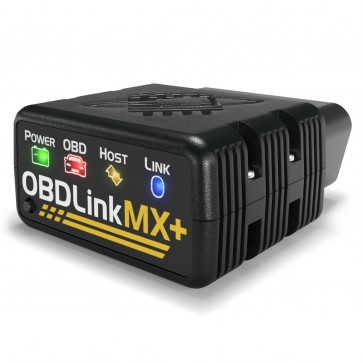

OBDLink MX+ Bluetooth Scan Tool (iOS, Android, PC)

Free U.S. Priority Shipping!

Turn your smart phone, tablet, or PC into a sophisticated diagnostic scan tool, trip computer, and real-time performance monitor. OBDLink® MX Bluetooth can access GM SW-CAN & Ford MS-CAN networks in addition to standard OBD-II protocols.

Availability: In Stock

$99.95
Item# 428101
Details

Details

OBDLink® MX is a budget-priced, pocket-size Bluetooth OBD-II adapter for all OBD-II compliant vehicles (except hybrid or electric vehicles). It can be used as a diagnostic scan tool, trip computer, logger, and real-time performance monitor. OBDLink® MX surpassed performance in every competing Bluetooth OBD-II adapter, delivering 300% more data samples per second. Its BatterySaver™ sleep mode allows the adapter to stay plugged in continually, without draining the vehicle’s battery.

Unlike the vast majority of Bluetooth OBD adapters, which constantly broadcast their presence and use an easy-to-guess 4-digit PIN, OBDLink® MX utilizes a unique multi-layered link security mechanism, eliminating the risk of unauthorized access. OBDLink MX’s support of the de facto standard ELM327 command set, makes it compatible with tons of third-party OBD software and mobile apps.

OBDwiz and OBDLink app, included with OBDLink® MX, allow you to:

  • Turn off the check engine light, and erase stored diagnostic information
  • Read and erase stored, pending, and permanent trouble codes (both generic and manufacturer-specific)
  • Access freeze frame information
  • Display, graph, and log 90+ real-time parameters
  • Create custom digital dashboards
  • Measure and display fuel economy
  • And much more!

KEY FEATURES

  • Maximum vehicle coverage (Verify your vehicle is OBD-II compliant)
  • Supports SW-CAN & MS-CAN protocols
  • World’s fastest Bluetooth OBD-II adapter
  • Small form factor
  • Hacker-proof
  • Read & clear 'Check Engine' light
  • Automatic sleep & wake-up
  • Free Android app & Windows diagnostic software
  • More 3rd party app & software options
  • Free firmware updates
Specifications

Additional Info

INTERFACE Bluetooth
DEVICE WEIGHT 1.2 oz (34.02 g)
DIMENSIONS 1.97 x 1.77 x 0.91 in (50 x 45 x 23 mm)
SUPPORTS ALL OBD-II PROTOCOLS Yes
SUPPORTS SINGLE-WIRE CAN (GMLAN) Yes
SUPPORTS FORD MEDIUM-SPEED CAN (MS-CAN) Yes
BLUETOOTH SPECIFICATIONS
  • Innovative 'Connect' button - requires physical access to enable Bluetooth pairing
  • Secure 128-bit data encryption
  • Class 2 Bluetooth v3.0 transmission (max range: ~ 262 ft)
OPERATING CURRENT 68 mA
BATTERYSAVER™ MODE < 2 mA
OPERATING VOLTAGE 8-18V DC
OPERATING TEMPERATURE -4º to 131º F (-20º to 55º C)
OPERATING HUMIDITY 10 to 85% (non-condensing)
MAXIMUM PARAMETER ID (PID) RATE ~100 PIDs/second for PC & Android
PACKAGE CONTENTS
  • OBDLink® MX Bluetooth adapter
  • Quick Start Guide
  • License key for OBDwiz software
CERTIFICATIONS

International

  • RoHS Certified
  • REACH Compliant

North America

  • FCC Part 15B
  • IC ICES-003
  • ETSI EN 301 489-1 V1.9.2
  • ETSI EN 301 489-3 V1.6.1

Europe

  • CE (ETSI EN 300 328 V1.8.1 (2012-06))
  • E-Mark ECE R10
  • EN 60950-1

Australia/New Zealand

  • AS/NZS 61000.6.3
  • AS/NZS CISPR 22
  • ETSI EN 55022
  • ICE EN 61000.6.3
WARRANTY OBDLink® MX comes with an unconditional 90-day money-back guarantee, and a 3 year warranty.

3 year warranty90 day money back guarantee
Protocols
  • Legislated OBD protocols:
    • ISO 15765-4 (CAN 250/500 kbps, 11/29 bit)
    • ISO 14230-4 (Keyword Protocol 2000)
    • ISO 9141-2 (Asian, European, Chrysler)
    • SAE J1850 VPW (GM)
    • SAE J1850 PWM (Ford)
  • SAE J2411 Single-Wire CAN (SW-CAN) - GM proprietary network
  • Medium-Speed CAN (MS-CAN) - Ford proprietary network
Compatible Devices

Android

  • Smartphones (Android 2.2 and newer)
  • Tablets (Android 2.3.3 and newer)

Windows

  • Bluetooth-enabled PCs, Laptops, Netbooks (Windows XP SP2 and newer)
  • Phone (Windows Phone 8 and newer)
  • Tablets (Windows 8 and newer)

Blackberry

  • Smartphone (BB 10.0.0.0 and newer)
  • Tablet (BB 2.0.0.0 and newer)

Apple/iOS

  • Not supported

Action Cameras

Compare
OBDLink Comparison Table
DocumentationApps & FirmwareSupport
Technical support is offered through our Community Forum which is monitored by ScanTool.net Team Engineers: OBDLink® MX board.

Visit OBDLink.com for advanced support and recommended apps & software.
