Determining Your COM Port and Firmware Version for OBDLink™

There are several ways to determine which communications port (COM 1, COM 2, etc) your OBDLink™ uses when connecting to your PC. The quickest is to download the STN Finder Utility here.

Plug your OBDLink into a USB port, then run STN Finder. STN Finder will automatically detect what COM port your OBDLink is connected to, and the transmission (baud) speed.

STN Finder 1

In this instance, the OBDLink was found on COM 4 running at 115200 baud.

We will use this information in the STN Term software to determine your firmware version. STN Term can be downloaded here.

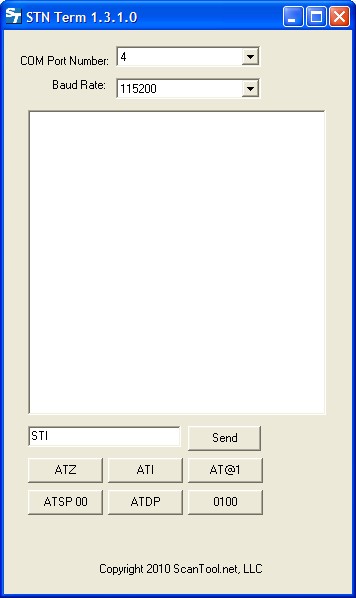

Open STN Term, and enter the COM Port and baud rate information we found with STN Finder:

STN term step 1

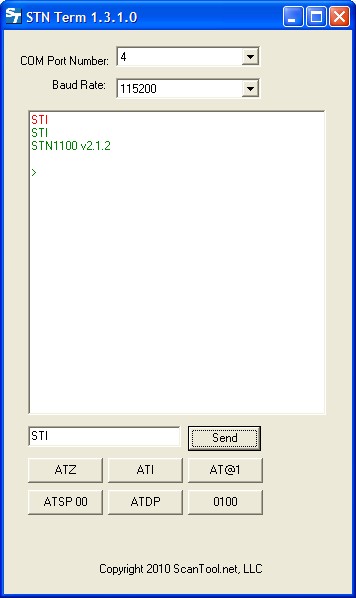

In the box to the left of the 'Send' button, type STI. Then hit the 'Send' button. STN Term will report the firmware version in the main window as shown below:

STN term step 2

In this case, the firmware version is 2.1.2.
