OBDLink CI Scan Tool

OBDLink CI Scan Tool

This item is no longer in production. It had been superseded by OBDLink SX+

Use your PC or laptop to scan your vehicle with the smarter, faster, upgradeable OBDLink CI. The new scan tool supports all European, Asian, and many US makes of vehicles, including all 2008 and newer US cars and light trucks.

Availability: Out of stock

$0.00

2 Review(s) | Add Your Review

Item# 4250

Share On:

Details

Details

OBDLink CI

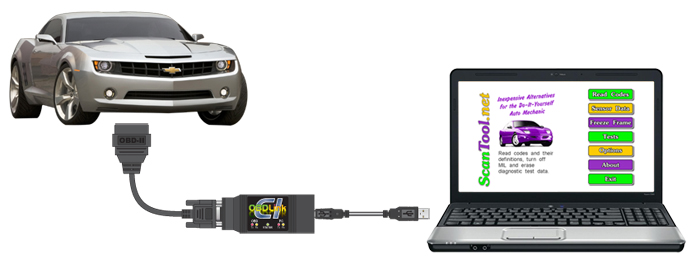

OBDLink CI connection diagram

Overview

The OBDLink CI is a PC-based scan tool that is a breeze to install and configure, and turns any Windows PC with a USB port into a simple-to-use, yet sophisticated scan tool — for a small fraction of the cost of comparable standalone units! The package includes everything you need to diagnose your vehicle's problems.

Basic diagnostic software included with the scan tool, allows you to:

Turn off Check Engine Light, and erase stored diagnostic information
Read and Erase Trouble Codes (Generic and Manufacturer-Specific)
Display 60+ Real-Time Parameters

Premium diagnostic software, such as ScanXL and ScanMaster, offers a myriad of additional features, including access to proprietary systems such as ABS, and thousands of enhanced manufacturer-specific parameters.

The firmware inside the OBDLink CI unit is upgradeable, which means you can enjoy the latest features by downloading a free update.

Key features

USB interface
Supported baud rates from 9600 up to 2M baud
Supported OBD protocols:
- ISO15765-4 (CAN)

ISO14230-4 (Keyword Protocol 2000)
ISO9141-2

User upgradeable via a free update
Improved automatic protocol detection algorithm
Smart keep-alive algorithm helps ensure a stable connection on ISO and KWP vehicles
Large CAN memory buffer allows the scan tool to receive large amounts of data
Greatly increased data throughput delivers faster screen updates and more graph points
Dimensions: 3.75" x 1.7" (95 mm x 43 mm)

Compatibility

OBDLink CI is compatible with most European, Asian, and American vehicles. It supports all model year 2008 and newer vehicles. If your vehicle is OBD-2 compliant, but is not supported by OBDLink CI, we'll exchange it for an OBDLink.

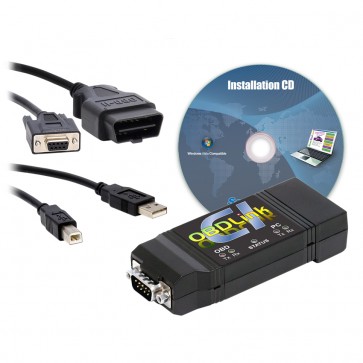

Package contents

OBDLink CI unit
USB cable (6 feet)
OBD-II cable (6 feet)
Quick Start Guide
Installation CD

Downloads

OBDLink CI Quick Start Guide
USB drivers
ScanTool.net diagnostic software
Firmware Updates

Support

See what other customers say about this tool, and ask questions on the Forum: OBDLink CI board.

Warranty

This product comes with an unconditional 90-day money-back guarantee, and a 3 year warranty.

Specifications

Additional Info

INTERFACE	No
SUPPORTS ALL OBD-II PROTOCOLS	Yes
SUPPORTS SINGLE-WIRE CAN (GMLAN)	No
SUPPORTS FORD MEDIUM-SPEED CAN (MS-CAN)	No
OPERATING CURRENT	No
BATTERYSAVER™ MODE	No
OPERATING TEMPERATURE	.
OPERATING VOLTAGE	.
OPERATING HUMIDITY	.
MAXIMUM PARAMETER ID (PID) RATE	No
PACKAGE CONTENTS	No
WARRANTY	No

Reviews

Customer Reviews (2)

Great deal, solid hardware!Review by Horace: Worked great first time! Fast refresh and down-loadable upgrades make it a great deal.
Have used several software packages so far, the OBDLink CI has worked with them all - first time unlike some of the others.
Also received a voucher allowing me to upgrade should the CI not have the appropriate protocol.
Couldn't be happier - many thanks and keep up the great work! (Posted on 1/4/2010)
Works PerfectlyReview by MR2: After paying $60 at some dealership to run the diagnostic codes, I vowed never again and purchased the OBDLink CI - worked great since the first run, now I use it for performance comparisons as I upgrade my intake,exhaust,filters,headers,.... (Posted on 8/11/2009)
