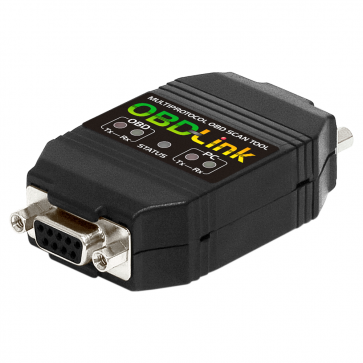

OBDLink S Scan Tool

OBDLink® S is the small form factor OBD to RS232 interface designed for the fleet management, emissions testing, and CarPC markets. It is compatible with all OBD-II compliant vehicles, features PowerSave™ functionality, and free regular firmware updates. OBDLink® S is a direct plug-and-play upgrade for the ElmScan 5 and other ELM327-compliant interfaces.

Availability: In Stock

$99.95
Item# 4254

* Required Fields

Details

Details

OBDLink® S is an OBD to RS232 interface in a small form factor, durable enclosure. It is perfect for permanent vehicle installations, situations where a USB port is not available, or where the workstation is located a significant distance from the vehicle being scanned. Typical applications include:

  • CarPCs
  • Fleet management and tracking systems
  • In-vehicle data logging
  • Emissions testing

The free feature-packed OBDwiz diagnostic software included with the scan tool allows you to:

  • Turn off check engine light, and erase stored diagnostic information
  • Read and erase stored, pending, and permanent trouble codes (both generic and manufacturer-specific)
  • Access freeze frame information
  • Display, graph, and log 90+ real-time parameters
  • Create custom digital dashboards
  • Measure and display fuel economy
  • And much more!

KEY FEATURES

  • Small form factor
  • RS-232 interface
  • Baud rates from 9600 up to 1M baud
  • PowerSave functionality (less than 1 mA standby current)
  • Compatible with more diagnostic software than any other scan tool
  • Extended command set allows the tool to perform enhanced diagnostics not possible with ELM327-based scan tools
  • User upgradeable via free downloads
  • +5V or +12V on pin 9 of the DB9 connector, allowing the connection of a wireless adapter
  • Improved automatic protocol detection algorithm
  • Smart keep-alive algorithm helps ensure a stable connection on ISO and KWP vehicles
  • Large CAN memory buffer allows the scan tool to receive large amounts of data
  • Greatly increased data throughput delivers faster screen updates and more graph points

Specifications

Additional Info

INTERFACE Serial Port
SUPPORTS ALL OBD-II PROTOCOLS Yes
SUPPORTS SINGLE-WIRE CAN (GMLAN) Yes
SUPPORTS FORD MEDIUM-SPEED CAN (MS-CAN) Yes
OPERATING CURRENT 99 mA
BATTERYSAVER™ MODE < 1 mA
OPERATING TEMPERATURE -4º to 131º F (-20º to 55º C)
OPERATING VOLTAGE 8-18V DC
OPERATING HUMIDITY 10 to 85% (non-condensing)
MAXIMUM PARAMETER ID (PID) RATE -
PACKAGE CONTENTS
  • OBDLink® S unit
  • Serial cable (6 feet/1.8 m)
  • OBD-II cable (6 feet/1.8 m)
  • Quick Start Guide
  • License key for OBDwiz software
WARRANTY OBDLink® S comes with an unconditional 90-day money-back guarantee, and a 3 year warranty.

3 year warranty90 day money back guarantee

Protocols

  • Legislated OBD-II protocols:
    • ISO 15765-4 (CAN)
    • ISO 14230-4 (Keyword Protocol 2000)
    • ISO 9141-2 (Asian, European, Chrysler vehicles)
    • J1850 VPW (GM vehicles)
    • J1850 PWM (Ford vehicles)

Devices

Windows

  • PCs, Laptops, Tablets, & Netbooks (Windows XP SP2 and newer) with serial connection

Apple/iOS & Android

  • Not supported

Documentation

Apps & Firmware

Support

Techinical support is offered through our Coummunity Forum which is monitored by ScanTool.net Team Engineers: OBDLink® S board.

Reviews

Customer Reviews (1)

Positive!Review by Mirza Krak
Satisfaction
Have used this together with a Telematics unit to log OBD data. Mostly to calculate fuel consumption and speed. Have worked really well without any problems. The mechanical design is good as it is small and easy to hide in a car.

Have also used this with the Scantool software which easy to use and great in functionality.
--Oct 12, 2012 5:18:55 AM (Posted on 10/11/2012)
