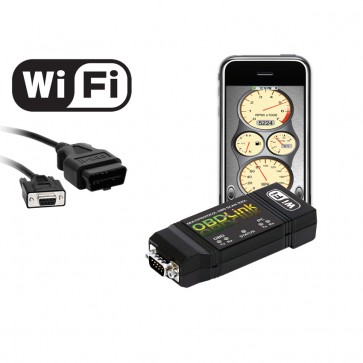

OBDLink WiFi Scan Tool

This item is no longer in production. It had been superseded by OBDLink MX Wi-Fi.


OBDLink WiFi features Plug and Play connectivity with your laptop, iPhone, iPod Touch, iPad or any other standard WiFi device. The built-in USB port gives you maximum versatility. Compatible with all model year 1996-2011 cars and light trucks sold in the United States, including all American, European, and Asian vehicles.

Availability: In Stock

$0.00
Item# 4251WF

Details

Details

Overview

OBDLink WiFi is our latest, most advanced scan tool that supports all OBD-2 compliant vehicles. In addition to operating wirelessly via WiFi, it includes a built-in USB interface. Use it to convert your laptop or desktop PC, iPhone, iPod Touch, iPad, or any other mobile WiFi device into a sophisticated, easy to use diagnostic system — for a small fraction of the cost of comparable standalone units! The package includes everything you need to diagnose your vehicle's problems and access performance parameters. OBDLink features the industry-leading data throughput to capture more graph points and faster screen updates.

OBDLink WiFi is compatible with all OBD-related apps available in the App Store, including DashCommand.

The free feature-packed OBDwiz diagnostic software (for Windows) included with the scan tool allows you to:

  • Turn off check engine light, and erase stored diagnostic information
  • Read and erase stored, pending, and permanent trouble codes (both generic and manufacturer-specific)
  • Access freeze frame information
  • Display, graph, and log 90+ real-time parameters
  • Create custom digital dashboards
  • Measure and display fuel economy
  • And much more!

Premium diagnostic software, such as ScanXL and ScanMaster, offers a myriad of additional features including Dynometer, multi-language support, and data manipulation tools. ScanXL’s Enhanced Diagnostics Add-ons offer support for thousands of enhanced manufacturer-specific parameters, as well as ABS and other proprietary systems.

The firmware inside the OBDLink unit is upgradeable, which means you can enjoy the latest features by downloading a free update.

Key features

  • WiFi looks just like a standard hotspot or access point (802.11 b/g)
  • USB interface (includes cable)
  • Greatly increased data throughput delivers faster screen updates and more graph points
  • Baud rates from 9600 up to 2M baud
  • Supports all legislated OBD protocols:
    • ISO15765-4 (CAN)
    • ISO14230-4 (Keyword Protocol 2000)
    • ISO9141-2 (Asian, European, Chrysler vehicles)
    • J1850 VPW (GM vehicles)
    • J1850 PWM (Ford vehicles)
  • Compatible with more diagnostic software than any other scan tool
  • Extended command set allows the tool to perform enhanced diagnostics not possible with ELM327-based scan tools
  • User upgradeable via free downloads
  • Can be powered from OBD or USB, for even easier firmware updates
  • Improved automatic protocol detection algorithm
  • Smart keep-alive algorithm helps ensure a stable connection on ISO and KWP vehicles
  • Large CAN memory buffer allows the scan tool to receive large amounts of data
  • Dimensions: 3.75" x 1.7" (95 mm x 43 mm)

Compatibility

OBDLink is compatible with all model year 1996 & newer cars and light trucks sold in the United States, including all American, European, and Asian vehicles. OBD legislation varies from country to country, therefore if you reside outside the United States, make sure that your vehicle is OBD-2 compliant before purchasing this product. If you are in doubt, please remember that you can return the scan tool for a full refund within 90 days of purchase.

Please note: OBDLink WiFi is not compatible with Android. Please see OBDLink Bluetooth.

Package contents

  • OBDLink unit
  • USB cable (6 feet/1.8 m)
  • OBD-II cable (6 feet/1.8 m)
  • Quick Start Guide
  • Installation CD

Downloads

OBDLink Quick Start Guide
USB drivers
OBDwiz Diagnostic Software
Firmware Updates
Finding OBDLink WiFi setup videos on your OBDLink CD
STN1100 Family Reference Manual

WiFi Settings

IP: 169.254.1.10
Port: 23

Support

See what other customers say about this tool, and ask questions on the Forum: OBDLink board.

Warranty

OBDLink WiFi comes with an unconditional 90-day money-back guarantee, and a 3 year warranty.

Specifications

Additional Info

INTERFACE USB Port
SUPPORTS ALL OBD-II PROTOCOLS Yes
SUPPORTS SINGLE-WIRE CAN (GMLAN) Yes
SUPPORTS FORD MEDIUM-SPEED CAN (MS-CAN) Yes
OPERATING CURRENT No
BATTERYSAVER™ MODE No
OPERATING TEMPERATURE -4º to 131º F (-20º to 55º C)
OPERATING VOLTAGE 8-18V DC
OPERATING HUMIDITY 10 to 85% (non-condensing)
MAXIMUM PARAMETER ID (PID) RATE No
PACKAGE CONTENTS No
WARRANTY No

Documentation

QSGs go here

Apps & Firmware

Download section here

Reviews

Customer Reviews (8)

Can't even read codesReview by Josh
Tried it on a 2007 ford fusion, can't even read the codes, says I need to buy an add on. Cant read toyota tacoma 1999, or a toyota tacoma 2006. I wouldn't recommend this hit or miss product. Spend some money and get a quality tool, not one of these novelty items
--Feb 10, 2014 4:47:35 PM

RESPONSE: You can always write us when you have questions like this one. The fact that you couldn't access the codes you wanted is not the fault of the scan tool. As long as your vehicle is OBDII compliant, any of our scan tools (with the free software provided) will read and clear all the basic OBDII trouble codes listed at this link: http://www.scantool.net/obdwiz/#supported_pids

To access anything beyond that, you would need to invest in vehicle-specific software. For example, in the above link, you will not see things like ABS or SRS, A/C or Airbags because they are not required by the OBDII standard. We do carry this enhanced software for GM, Ford and Mazda only.
**You should be aware, that once you move beyond the OBD2 basics, there are no requirements for the manufacturers so vehicles do tend to vary widely. Some vehicles will not allow access to certain parameters, it all depends on the design of your vehicle.
**Don't kill the messenger** :) (Posted on 2/10/2014)
worksReview by fixkick
it does not work on many (vast) non usa cars.
it will not work on OBD1 old cars, pre 96
and pre 2004 in some countries. even canada went OBD2 in 1998.
do not buy the tool if you dont live in the usa,
but do first find out what your non usa car uses.
that be first.
how about jan 2006 cars in Australia.
non compliance before.
many pre 2003 Eurpean cars are not compliant.

http://www.fixkick.com/ECU/ODB2/OBD-facts.html

OBD2 is a USA idea, and invention.
other countries use it or not, or abridge it.
OBD2 or EOBD compliant.
the mitsbishi fusco canter, is a huge truck
and is sold in the USA, are you?
At 17,995 lb./25,710 lb., the FE180
and truck rules are not the same as gas passenger cars, not at all.
and diesel rules and gasoline are different on heavy trucks. 14,000 lbs is the magic weight.
over that. and different for these with alternative fuels, state country, state engine and type and fuel options, posted under the hood. The heavy trucks have complex rulings by EPA. why over this little box.
2010 is a new cut in year,
ask todd here for help.
http://www.epa.gov/obd/regtech/heavy.htm
-- May 31, 2013 12:09:26 PM



(Posted on 5/31/2013)
Didn't work for me...Review by Owen
I bought this unit in the hope that it would read the ECU data from my 2010 Fuso Canter, but it didn't. The unit seems to receive data from the truck, but the software reports that the ECU is not OBDII compliant. I am pretty convinced that this is a software issue, not a hardware issue, but when I asked the question I was just referred to the link given in the first review. That annoyed me a bit I must say. Surely the guys who build these things should know if they will work on a specific vehicle or not. Not a happy customer.
-- Nov 21, 2012 3:07:53 PM

RESPONSE: Unfortunately, we do not have a list of which vehicles will or will not work with our scan tools. What we do know is that any vehicles that are OBDII compliant will work with any of our scan tools. It is not a hardware or a software issue, its a compliance issue. Small cars and trucks manufactured here in the US are required to be OBDII compliant as of 1996, but as for others many are just not. We do offer a 90-day money back guarantee. You can email us if you are interested. (Posted on 11/21/2012)
Fair productReview by Joseph
The tool work with some vehicles. I've tested it on 2003 Hyundai Matrix (worked), 2002 VW polo (worked), 2006 Renault Megane (only some functions worked), 2002 Toyota RAV4 (did not work), 2009 Nissan 350z (did not work), 2010 Toyota Avanza (did not work)
-- Oct 16, 2012 4:12:28 AM

RESPONSE: All of our scan tools, like most generic scan tools, are not compatible with OBD-I vehicles. The article on the following page can help determine compliance if you are unsure: https://www.scantool.net/support/index.php?_m=knowledgebase&_a=viewarticle&kbarticleid=2&nav=0,1
-- ScanTool.net (Posted on 10/15/2012)
Works amazingly well as advertised.Review by Andre Sahatoo
This tool has worked in every vehicle that I have tried it in so far (Nissan, Toyota, Mitsubishi). Key features are it has life time updates to the firmware, WIFI is great for eliminating cables, works on PC as well as my Ipad and Iphone with (Dash Command app). This is definitely a good scan tool for any.
--Oct 15, 2012 8:16:22 PM (Posted on 10/15/2012)
Slow on RefreshReview by Travis
SLOW to refresh. Loses connection.
-- Oct 15, 2012 5:05:36 PM

RESPONSE: We do offer technical support through our forum, as well as backing our products by a 90-day money back guarantee! (Posted on 10/15/2012)
Beats the competition hands down!Review by Joseph Hoffman [Amazon Review]
I love this tool, it has more options and features than I would use as a mechanic. Mostly I use it for diagnosing problems with cars in order to fix the correct problem. Free updates for life and wireless connectivity are just a few options that make this tool worth it's weight ( or lack there of ) in gold. For the price you could get a hand held tool for the same price or more. Or you could get a tool that does it all for a very, very reasonable price! As soon as I found this I knew it was what I needed and wanted. Thanks for such a great product!
-- April 1, 2012 (Posted on 7/11/2012)
works well Review by DD
Does what they say it does. I haven't used it with an I-phone yet but I can say it is great with a lap-top. Diagnosed my mothers Camry to a specific cylinder. And my brother-in-laws Dakota. (Posted on 5/22/2011)
